Flowchart parsing

Parsing is the final stage of the core pipeline. It takes flowchart images as input and extracts structured flowchart data.

The parsed data describes the nodes, their text and labels, the connections between nodes, and any additional text in the diagram.

Parse images from a directory

parse_imgs() takes a directory of flowchart images and saves one JSON result per image into a dedicated output directory.

from pathlib import Path

from flowde.parse_imgs import parse_imgs
from flowde.parsing_fns.openai_parse import make_openai_parse_fn

img_dir = Path("results/rotation/rotated_images")
save_dir = Path("results/parsing/full")

input_text = """
Parse this flowchart into structured data.
Assign consecutive node numbers starting at 1.
Capture each node's text, labels and outgoing connections.
Put text that does not belong to a node in additional_texts.
"""

parse_fn = make_openai_parse_fn(
    input_text=input_text,
    model="gpt-5.6-luna",
    effort="medium",
)

responses = parse_imgs(
    parse_fn=parse_fn,
    img_dir=img_dir,
    save_dir=save_dir,
    max_concurrent_jobs=1,
)

By default, parse_imgs() processes *.png files inside img_dir, in sorted path order. Subdirectories are not searched. The returned responses list contains one Pydantic model per processed image: responses[0] contains the parsed data for the first sorted image path, responses[1] for the second, and so on.

The example above uses OpenAI and requires the OpenAI setup. For parse_fn, you can use an OpenAI parser created with make_openai_parse_fn(), a Gemini parser created with make_gemini_parse_fn(), or your own parsing function. The provider setup guide also covers Azure OpenAI.

make_openai_parse_fn() creates a parser for the complete flowchart format by default. You can instead parse selected parts, such as node text or connections, or use a custom output schema.

See the parse_imgs() and make_openai_parse_fn() API references for full details of all parameters.

Parsing results

Each image's result is saved as a JSON file with the same filename stem. For example, paper-1_0.png produces paper-1_0.json:

results/parsing/full/
├── paper-1_0.json
├── paper-2_0.json
└── .flowde/

You can also inspect a result from the returned responses list:

print(responses[0].model_dump_json(indent=2))

.flowde records which images have been parsed, their results, parser settings, image fingerprints and any supplied partial flowchart data. Flowde uses this metadata to resume the run and detect changes to the inputs or saved results.

Understand the flowchart format

Flowde represents a flowchart as a list of nodes and a list of additional texts.

A complete parsed flowchart has this structure:

from pydantic import BaseModel


class Node(BaseModel):
    node_number: int
    text: str
    labels: list[str]
    points_to: list[int]


class Flowchart(BaseModel):
    nodes: list[Node]
    additional_texts: list[str]

Each node represents one box or item in the flowchart.

The fields have the following meanings:

• node_number: a unique identifier given to each node;
• text: the text inside the node;
• labels: text labels that apply to the node;
• points_to: the node numbers reached by following this node's outgoing arrows;
• additional_texts: text that is not assigned to a specific node, such as a caption.

The examples below show how this format represents the information in a diagram. These interpretation conventions are also used in the supplied CONSORT prompts.

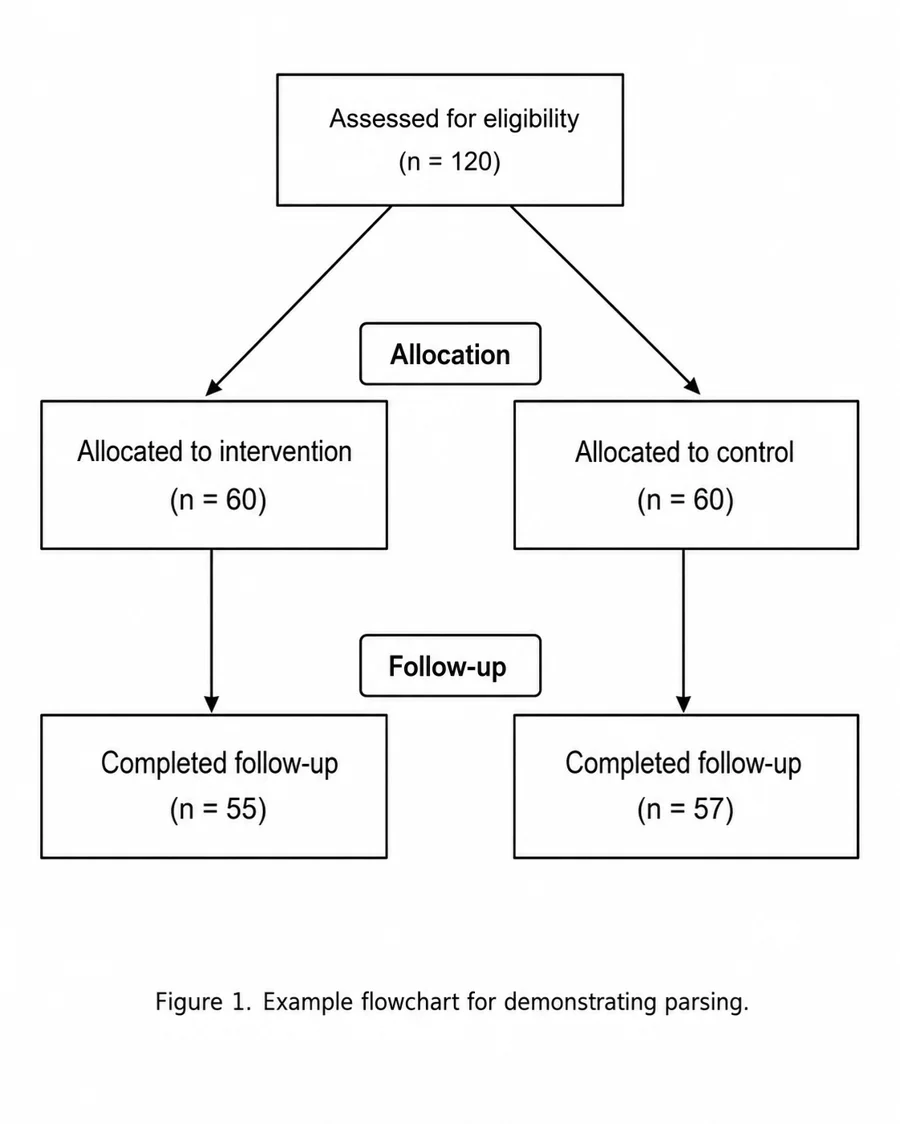

Example 1: A basic flowchart

A complete parse of this diagram looks like:

{
  "nodes": [
    {
      "node_number": 1,
      "text": "Assessed for eligibility\n(n = 120)",
      "labels": [],
      "points_to": [2, 3]
    },
    {
      "node_number": 2,
      "text": "Allocated to intervention\n(n = 60)",
      "labels": ["Allocation"],
      "points_to": [4]
    },
    {
      "node_number": 3,
      "text": "Allocated to control\n(n = 60)",
      "labels": ["Allocation"],
      "points_to": [5]
    },
    {
      "node_number": 4,
      "text": "Completed follow-up\n(n = 55)",
      "labels": ["Follow-up"],
      "points_to": []
    },
    {
      "node_number": 5,
      "text": "Completed follow-up\n(n = 57)",
      "labels": ["Follow-up"],
      "points_to": []
    }
  ],
  "additional_texts": ["Figure 1. Example flowchart for demonstrating parsing."]
}

Example 2: Keeping branches separate

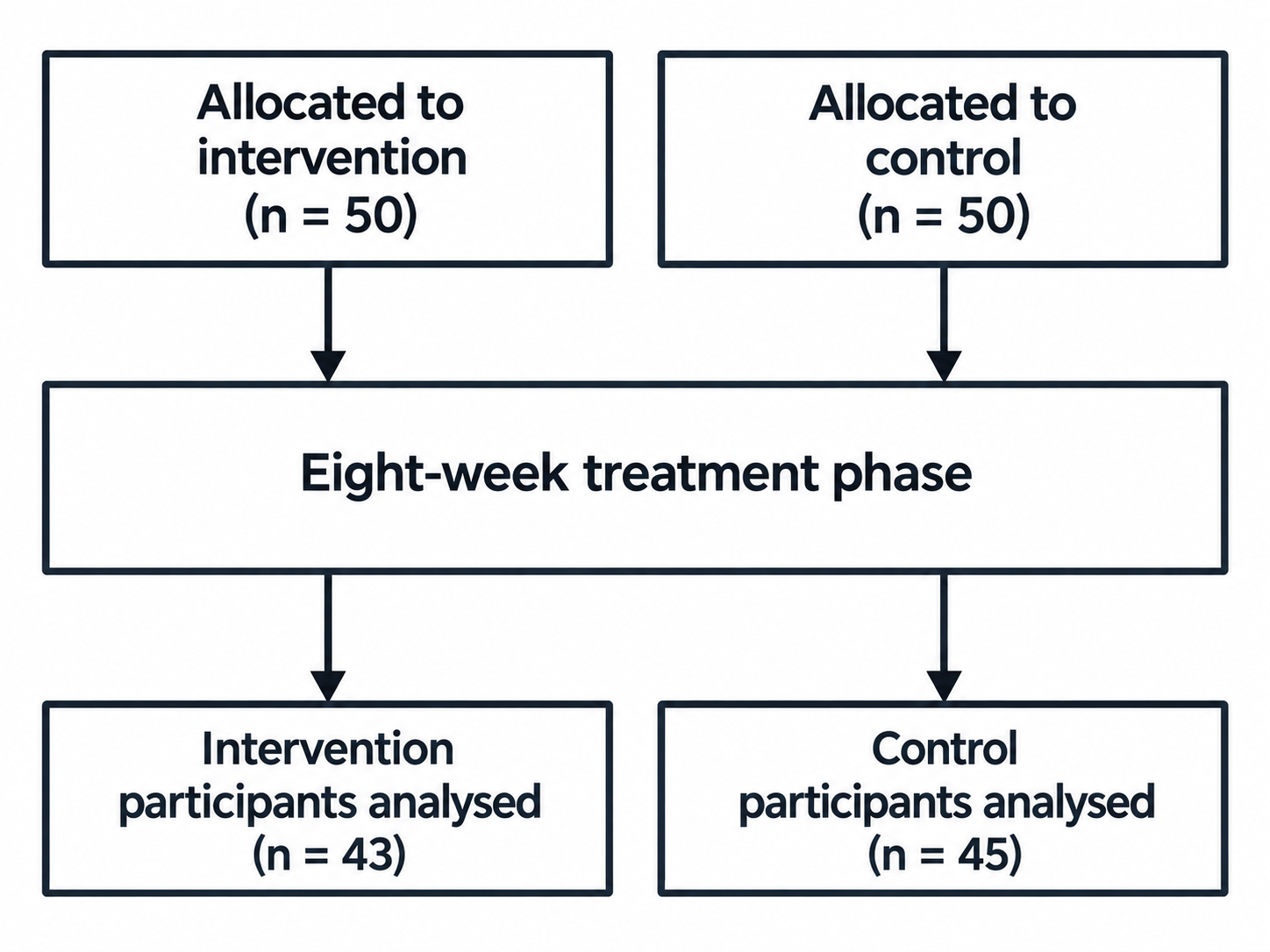

Some diagrams use one box to describe a step that applies separately to two or more branches. Here, the eight-week treatment phase applies independently to the intervention group and the control group:

The aligned arrows show two separate participant flows. Of the 50 participants allocated to intervention, 43 are analysed after the treatment phase. Of the 50 participants allocated to control, 45 are analysed. The shared treatment box avoids repeating the same text; the two groups do not merge during treatment.

If the parsed data used just one treatment node, both allocation nodes would point to that treatment node, and the treatment node would point to both analysis nodes. Those connections would incorrectly allow a path from intervention allocation to control analysis, and from control allocation to intervention analysis.

To preserve the intended participant flows, the parsed data represents the treatment box as two nodes with the same text. Node 3 belongs to the intervention branch, and node 4 belongs to the control branch:

{
  "nodes": [
    {
      "node_number": 1,
      "text": "Allocated to\nintervention\n(n = 50)",
      "labels": [],
      "points_to": [3]
    },
    {
      "node_number": 2,
      "text": "Allocated to\ncontrol\n(n = 50)",
      "labels": [],
      "points_to": [4]
    },
    {
      "node_number": 3,
      "text": "Eight-week treatment phase",
      "labels": [],
      "points_to": [5]
    },
    {
      "node_number": 4,
      "text": "Eight-week treatment phase",
      "labels": [],
      "points_to": [6]
    },
    {
      "node_number": 5,
      "text": "Intervention\nparticipants analysed\n(n = 43)",
      "labels": [],
      "points_to": []
    },
    {
      "node_number": 6,
      "text": "Control\nparticipants analysed\n(n = 45)",
      "labels": [],
      "points_to": []
    }
  ],
  "additional_texts": []
}

The intervention branch follows nodes 1 → 3 → 5, and the control branch follows nodes 2 → 4 → 6. Neither branch has a connection to the other group's analysis node.

Example 3: Advanced labels

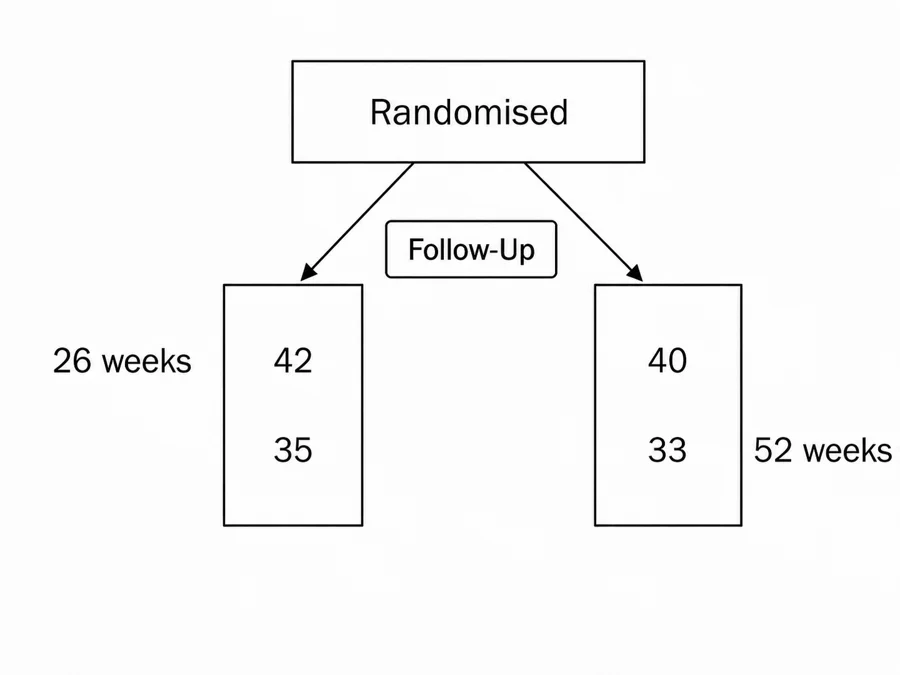

A single box can contain several values, each with a label that applies only to that value. The parsed representation needs to preserve which label belongs to each value.

Representing the bottom-left box as one node could produce:

...
    {
      "node_number": 2,
      "text": "42\n35",
      "labels": [
        "Follow-Up",
        "26 weeks",
        "52 weeks"
      ],
      "points_to": []
    },
...

This representation lists 26 weeks and 52 weeks as labels for a single node containing both 42 and 35, without specifying which label belongs to which value. The diagram's intended meaning is that 26 weeks applies to 42 and 52 weeks applies to 35. The parsed data needs to preserve those pairings. Flowde's format supports two ways to represent those pairings:

...
    {
      "node_number": 2,
      "text": "42\n35",
      "labels": [
        "Follow-Up",
        "26 weeks\n52 weeks",
      ],
      "points_to": []
    },
...

...
    {
      "node_number": 2,
      "text": "42",
      "labels": [
        "Follow-Up",
        "26 weeks"
      ],
      "points_to": [4]
    },
    ...
    {
      "node_number": 4,
      "text": "35",
      "labels": [
        "Follow-Up",
        "52 weeks"
      ],
      "points_to": []
    },
...

Resume parsing

To continue an unfinished parsing run whose results are saved in save_dir, you can set on_existing="resume":

responses = parse_imgs(
    parse_fn=parse_fn,
    img_dir=img_dir,
    save_dir=save_dir,
    max_concurrent_jobs=1,
    on_existing="resume",
)

The .flowde directory inside save_dir stores the parsing run's state. Flowde uses these records to resume unfinished work and check the integrity of the run. Resume raises an error if the parser's settings have changed, or if previously parsed input images, their supplied partial flowchart data or saved results have changed.

To use different settings or partial flowchart data, you can start a run in a new save_dir or replace the previous run with on_existing="overwrite". See managing runs for the full rules.

Parse parts separately

Splitting parsing into separate tasks can improve parsing accuracy by allowing the model to focus on one part of the flowchart at a time and use earlier results as context for later requests. You can also inspect intermediate results.

1. Parse node text

from pathlib import Path

from flowde.parse_imgs import parse_imgs
from flowde.parsing_fns.openai_parse import make_openai_parse_fn

img_dir = Path("results/rotation/rotated_images")
parts_dir = Path("results/parsing")

nodes_fn = make_openai_parse_fn(
    input_text=(
        "Parse the text of every node. Use consecutive node numbers starting "
        "at 1 and keep separate flowchart branches separate."
    ),
    model="gpt-5.6-luna",
    effort="medium",
    parts_to_parse={"node_text"},
)

nodes = parse_imgs(
    parse_fn=nodes_fn,
    img_dir=img_dir,
    save_dir=parts_dir / "node_text",
    max_concurrent_jobs=1,
)

The parts_to_parse={"node_text"} argument tells make_openai_parse_fn() to create a parser that returns only node numbers and text. For example, a two-node diagram could produce:

{
  "nodes": [
    { "node_number": 1, "text": "Assessed for eligibility (n = 120)" },
    { "node_number": 2, "text": "Randomised (n = 100)" }
  ]
}

node_text is the parsing-part name. nodes is the JSON field holding the node objects. This example saves the node-text JSON files in results/parsing/node_text.

You can choose from four parsing parts:

You can request several parts together, such as {"node_text", "labels"}. Without parts_to_parse or a custom result_structure, the OpenAI and Gemini parser factories request all four parts.

2. Parse flow using the saved nodes

flow_fn = make_openai_parse_fn(
    input_text=(
        "Find the outgoing connections for every supplied node. "
        "Use the supplied node numbers without changing them."
    ),
    model="gpt-5.6-luna",
    effort="medium",
    parts_to_parse={"flow"},
)

flow = parse_imgs(
    parse_fn=flow_fn,
    img_dir=img_dir,
    save_dir=parts_dir / "flow",
    nodes_dir=parts_dir / "node_text",
    max_concurrent_jobs=1,
)

For each input image, nodes_dir supplies the node numbers and text from the matching JSON file in results/parsing/node_text. The parser receives that saved data alongside the image so the prompt can ask for outgoing connections using the existing node numbers.

parts_to_parse={"flow"} tells the parser to parse only the outgoing connections for each node. For example:

{
  "nodes": [
    { "node_number": 1, "points_to": [2] },
    { "node_number": 2, "points_to": [] }
  ]
}

The flow JSON files are saved in results/parsing/flow.

3. Parse labels and additional text

Likewise, you can parse labels with parts_to_parse={"labels"} and additional text with parts_to_parse={"additional_texts"}. You can pass previously parsed parts as context through the following parse_imgs() parameters:

Matching images and parsed parts

Each parsed part is saved as a JSON file with the same filename stem as the source image. For example, the parts parsed from paper-1_0.png are saved as paper-1_0.json in each part's directory:

results/
├── rotation/
│   └── rotated_images/
│       ├── paper-1_0.png
│       └── paper-2_0.png
└── parsing/
    ├── node_text/
    │   ├── paper-1_0.json
    │   ├── paper-2_0.json
    │   └── .flowde/
    ├── flow/
    │   ├── paper-1_0.json
    │   ├── paper-2_0.json
    │   └── .flowde/
    ├── labels/
    │   ├── paper-1_0.json
    │   ├── paper-2_0.json
    │   └── .flowde/
    └── additional_texts/
        ├── paper-1_0.json
        ├── paper-2_0.json
        └── .flowde/

Combine the parsed parts

You can combine the saved node text, labels, connections and additional text into one JSON file per image:

from flowde.combine_parsed_parts import combine_parsed_parts

combined = combine_parsed_parts(
    nodes_dir=parts_dir / "node_text",
    flow_dir=parts_dir / "flow",
    labels_dir=parts_dir / "labels",
    additional_texts_dir=parts_dir / "additional_texts",
    save_dir=parts_dir / "combined",
)

To replace an earlier set of combined results, you can add on_existing="overwrite". See the combine_parsed_parts() API reference for full details of the parameters and validation rules.

Use a custom output schema

You can request a different JSON format by defining a Pydantic schema. This example asks for a title and a count of the diagram's boxes:

from pydantic import BaseModel, ConfigDict


class DiagramSummary(BaseModel):
    model_config = ConfigDict(extra="forbid")
    title: str
    number_of_boxes: int


summary_fn = make_openai_parse_fn(
    input_text="Give the diagram a short title and count its boxes.",
    model="gpt-5.6-luna",
    effort="medium",
    result_structure=DiagramSummary,
)

result_structure=DiagramSummary tells make_openai_parse_fn() to create a parser with title and number_of_boxes in its results. A custom schema replaces the standard flowchart format, so result_structure and parts_to_parse cannot be supplied together. See the factory API reference for the parameters.

Flowde's parsing benchmark expects the standard flowchart format, so arbitrary custom results such as DiagramSummary need their own evaluation method.

Bring your own parsing function

You can write your own parser and pass it to parse_imgs() as parse_fn. See the custom parsing tutorial for the requirements your function must meet and a complete working example.

Next step

You can benchmark the parsed results against manually annotated ground truth.
